The Highlights of minimal invasive Laser Therapy.

Iccy 980 – The Gentle Individualist.

The Iccy 980 was developed for the usage in the neurosurgery with focus on Percutaneous Laser Disc Decompression (PLDD) and the laser facet denervation. This diode laser system allows for safe and precise work even in critical structures, the surrounding tissue is not affected. Additionally the Iccy 980 benefits from optimal interaction with the tissue for a maximum of safety in therapy.

Optimum Interaction – Maximum Safety.

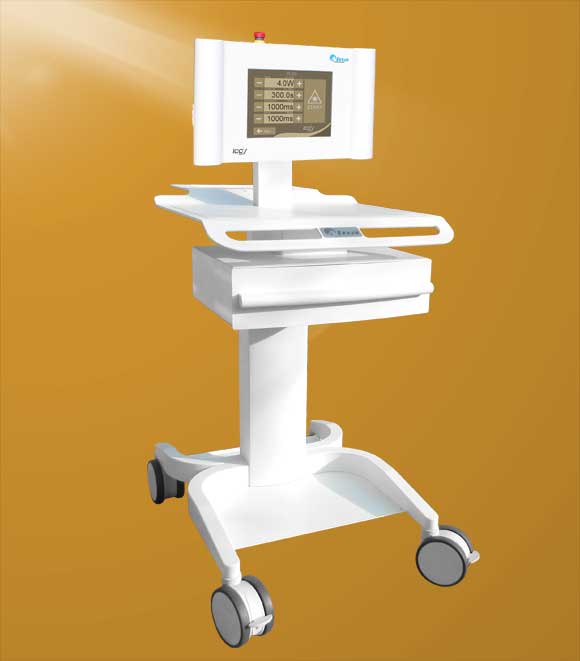

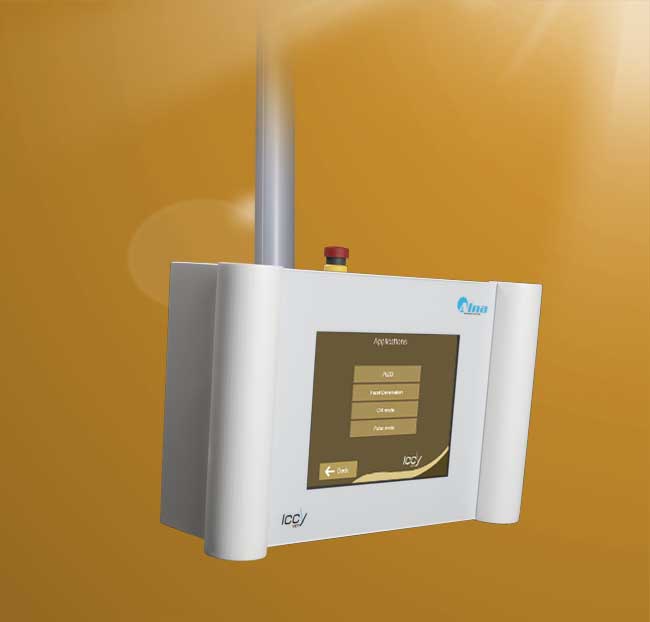

The Iccy 980 was constructed for maximum flexibility to serve the multiple needs that occur in neurosurgical practice. The laser can be equipped with an adjustable stand, a wall or a ceiling mount. Flexible configuration-options ensure a healthy posture of the user, the most important prerequisite for effective and focused work. The 8-lingual Diode Laser can be set up either with an adjustable stand, wall or ceiling mount. He is a true warrant for flexibility and mobility. The cart makes any changes, either room or station, possible: Depending on space demands, a suitable position for the laser can always be found.

Iccy 980: Technical Data

Model:

Iccy 980

Wavelength:

980+/- 5nm

Operation Modes:

CW, pulsed, Low-Level

Power:

0.5 – 12W, 10 – 100mW Low-Level

Pulse Width:

1ms – 1000ms

Interval:

1ms – 1000ms

Laser Class:

4

Pilot Beam:

650nm, < 1mW

Fiber:

200µm – 1000µm, F-SMA 905

Mains

230V~/ 50-60Hz

Consumption:

65W

Standards:

Directive 93/42/EEC

DIN EN 60601

DIN EN 60825

Languages

English, German, French, Italian, Spanish, Portuguese, Czech,

Russian, Arabic, Farsi, Hebrew



Made in Germany
